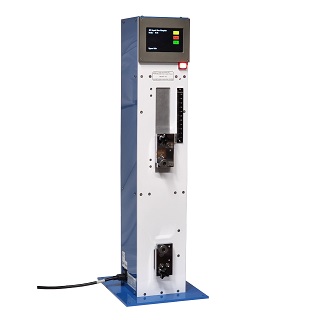

Nova+ 112
Magnet Wire Elongation Tester
Features:
- Meets NEMA or IEC and JIS specifications
- N.I.S.T traceability
- Elongation up to 50%
- Adjustable % elongation up to 50%
- Wireless output (WR-100 receiver required)
- Color touchscreen interface
- Test Magnet Wire Sizes:
44 AWG - 14 AWG
(0.05 mm - 1.6 mm) -
120VAC/3.0amps @ 50/60Hz
240VAC/1.5amps @ 50/60Hz
The Nova+ 112 Magnet Wire Elongation Tester performs the elongation test according to NEMA, or IEC and JIS specifications. The tester can be calibrated traceable to NIST. The elongation tester elongates a specimen of annealed magnet wire with a test length of 10 inches (NEMA) or 250 mm (IEC) to a predetermined % elongation up to 50% or to failure. The maximum elongation is 50 %.
The tester can test wire sizes 44 AWG to 12 AWG (0.05 mm to 2 mm).
Ball screw and linear guide assembly together with reliable electronics in a totally enclosed chassis provide a sturdy and reliable test platform.
Dimensions:
6 1/2" L x 6" W x 24" H
17cm L x 15cm W x 61cm H
