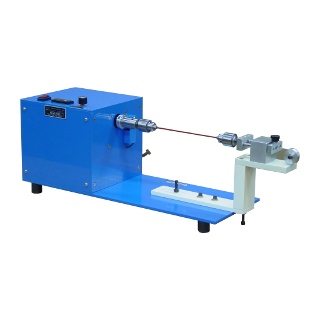

Nova 1590
Slit, Twist, and Peel (STP) Tester
Features:
- Ball Bearing Shaft Support
- 3/8" Chuck
- Test Magnet Wire Sizes:
44 AWG to 12 AWG
(0.05mm to 2.05mm)
The Nova 1590 Slit, Twist and Peel (STP) Tester is a motorized specimen twister. It twists a single specimen with a scrape along the axial length until the insulation peels from the conductor. A turn counter determines the number of rotation required. It is designed to be modular, ergonomic and user friendly. The sturdy chassis with its modular design ensures trouble free operation and ease of maintenance.
The Nova 1590 consists of the base plate, the control/twist motor module, and the sliding block / load application module.
Dimensions:
52" L x 16" W x 13" H
132cm L x 41cm W x 33cm H
Options:
Foot Switch
Slit, Twist & Peel Test Fixture
